Home » Products » Paper Bag Machine » GY-ZF Paper-Plastic Woven Bag Making Machine (Automatic Bottom Sewing Sealing Machine)

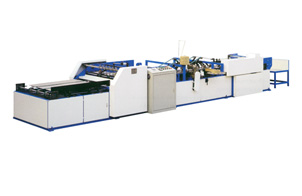

GY-ZF Paper-Plastic Woven Bag Making Machine (Automatic Bottom sewing sealing machine)

GY-ZF Paper-Plastic Woven Bag Making Machine

Description:
This GY-ZF paper- plastic bottom sewing sealing machine is a kind of paper- plastic woven bag making machine. It is mainly used for the paper plastic triple tubes, or paper tube's bottom sewing, and then hot sealing them with tape.

Characteristics:
Feeding: using vacuum extraction mechanical arm for the bag feeding.
Sewing: this paper- plastic woven bag making machine (paper- plastic bottom sewing sealing machine) adopts the Newlong automatic sewing machine from Japan.
Sticking: using hot melt adhesive tape for the sealing.
Driven system: use frequency conversion stepless speed regulation for this bottom sewing sealing machine.
Temperature Control: using digital controller as well as solid-state relay adaptive pID function for it
Additional, the electric control system of the machine works accurately and reliably.

Technical Parameters of Paper-Plastic Woven Bag Making Machine:

Model GYZF-1200
Tube Length(mm) 500-1100
Tube Width(mm) 300-650
Output(pcs/min) 10-30
Main power (KW) 1.5
Total Consumption(KW) 4
Total weight(T)  2
Overall dimensions(L×W×H)(mm) 8500×2000×1500

Founded in 1998, we are professional manufactory and supplier of paper- plastic woven bag making machine, and we can also provide plastic bag making machine, plastic bag making machine, computer bag maker, etc. With great quality of paper- plastic woven bag making machine, we established business relationship with customers from countries such as Japan, South Korea, Germany, Egypt, Vietnam, Russia, Britain, and Brazil and so on.
