Woven Bag-Sewing Machine

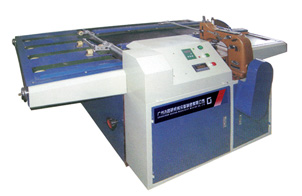

Woven Bag Sewing Machine

Description:
The woven bag sewing machine is suitable for the PP bag or new long bag production. This machine can hem the bottom and top of the bag. We mainly offer two types, the GY-SXF type is automatic bag-sewing machine with up and down ports sewing, and the GY-FB type is electric bag-sewing machine.





Main parameters of GY-SXF Automatic Bag-sewing machine Up and Down Ports:

Seam speed(pcs/min) 30-40
Power(kw) 1.1-2.2
Overall dimensions(mm) 2200×1100×1000

Main parameters of GY-FB Electric Bag-sewing machine:

Type GY-FB-1 GY-FB-2 GY-FB-3
Max.sewing speed(r/min) 1400 1400 1400
Thread chain type Chain Single thread Double thread Double thread
Length of thread (mm) 10-18 9-16 9-14
Max.sewing thickness(mm) 8 8 8
Power of motor (kw) 0.55 0.55 0.55
Applied range PP woven sack PP woven sack Container bag
